Your Professional Functional Film Supplier
Our goal is to be your true partner in Functional Film field in China. Changzhou Dibona Plastics Co.,Ltd. was established in 2014. The company is committed to the research, development, production and sales of EAA hot melt adhesive series films. The products have a first-class brand image and excellent professional quality, equipped with a rigorous and perfect management system, a high-quality management and R&D team, and a complete and standardized after-sales service system.
-

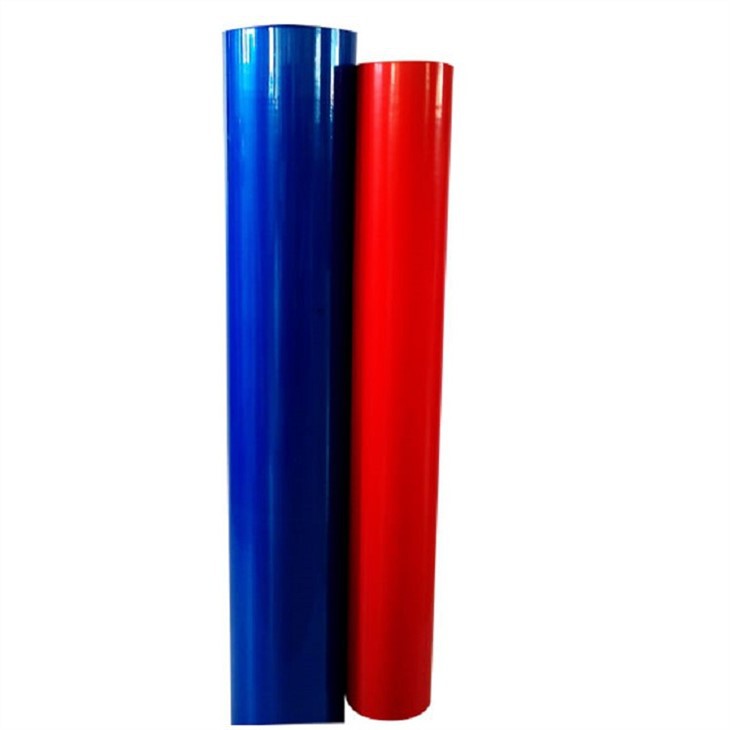

![Release Film]()
Release FilmRelease film refers to a thin plastic film or sheet that is used to cover or protect various surfaces or materials during production, transportation, storage, or installation. The release film isread more -
![Electric Conductive Film]()
Electric Conductive FilmAn electric conductive film is a thin layer or coating made from materials that have high electrical conductivity. It is typically used to create a conductive path or connection between differentread more -
![Electric Conductive Film]()
Electric Conductive FilmPE conductive film not only has excellent conductivity but also has good static discharge and mechanical processing properties. After processing, it can be made into black conductive bags, conductiveread more -

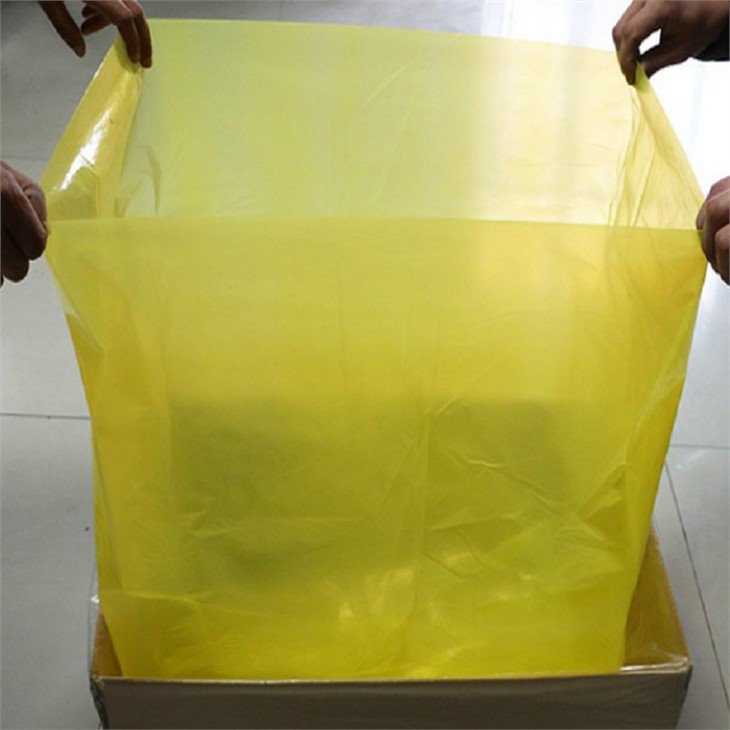

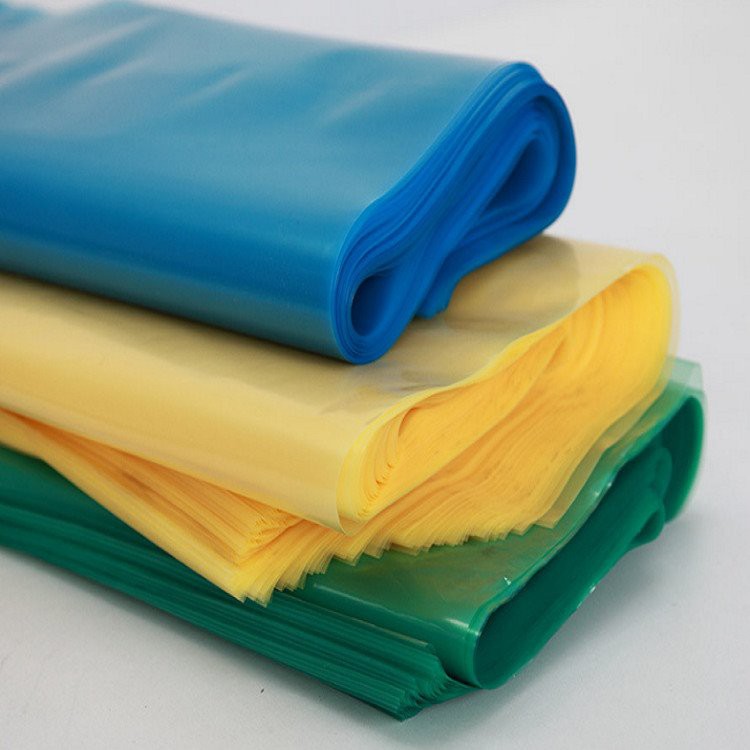

![Rust Resistant Film]()
Rust Resistant FilmPE anti-rust film can protect objects from salt damage, corrosive gas, high temperature and high humidity, and cut off the contact between water vapor and oxygen in the air and objects, so as toread more -
![Anti Ageing Film]()
Anti Ageing FilmAnti-aging film, easy to cover with anti-aging effect. This product can protect objects from sun exposure, high temperature, high humidity, etc.read more -

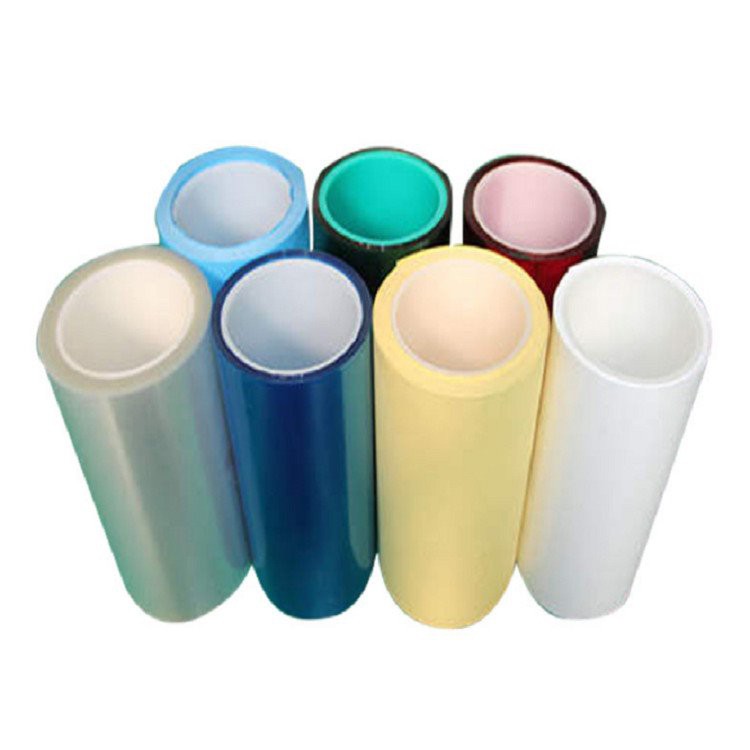

![Release Film]()
Release FilmThe release film has good cleanliness. Different release effects, different colors and different temperatures of the film can be customized according to customer needs.read more -
![Mucous Membrane]()
Mucous MembraneSelf-adhesive film is a new product with high transparency and no offset printing. It has very good tensile strength and good puncture resistance.read more -
![Flame Retardant Coating]()
Flame Retardant CoatingThe flame retardant film can be used as a curtain wall or a temporary protective cover. The flame retardant film has a good function of inhibiting flame propagation and combustion, and is non-toxic,read more
Why Choose Us
Quality control
With quality as the core and brand creation as the goal, actively expand the target regional market, stabilize and expand market share.
Wide product range
We offer a variety of hot melt adhesive film products to suit the needs of different industries and applications.
Professional team
The company is equipped with a complete set of enterprise management system, including enterprise management department, financial department, research and development department, sales department, production department and after-sales service.
Rich experience
After years of development, we have explored new ways of product innovation. After the double baptism of listing and additional issuance, the company's product structure is more complete, with more complete types.
The Functional Film produced by our company mainly include the following types:
No migration, eliminating the risk of silicone resin transfer onto adjacent materials.
The weight tolerance per unit area of single or double-sided coating is very small.
The base film has excellent mechanical strength and chemical properties.
High stability under extreme weather conditions; it can withstand high temperatures of approximately 180°C for extended periods and up to 200°C for a few hours.
Extended shelf life.
Silicone-based release films are categorized by the variation in peel strength after heating: light peel, medium peel, and heavy peel. The release strength can be controlled according to the requirement, and the heat resistance is excellent.
Release films are available in various thicknesses to meet customer needs. Common applications include light, medium, and heavy release films. Different peel strengths are suitable for bonding different adhesive tapes or films.
Applications of Release Film
Release films are used in industries such as electronics, semiconductors, home appliance manufacturing, printing, packaging, insulation, flexible circuit printing, display screen protection, membrane switches, film windows, printing film, film baseplates, non-adhesive back paper, coating, silicon coating, and various applications in release, bonding, films, silicone chemistry, fluorine chemistry, nonwoven fibers, surface treatment, optics, micro-structured surfaces, precision coatings, motor gaskets, cable tapes, instrument panels, capacitor insulation, furniture release films, window films, and more.
Performance Index
|
Item |
Unit |
Index |
|
Thickness |
mm |
0.02-0.03 |
|
Width |
mm |
1000-2000 |
|
Sleeve diameter |
mm |
350-400 |
|
Max. Tensile strength |
N/50mm |
≥120 |
|
Elongation @ break |
% |
≥150 |
|
Peeling force |
gf/25mm |
≤20 |
|
Subsequent adhesion rate |
% |
≥85 |
Specification
|
PROPERTY |
Unit |
Method |
Value 75u |
|
Substance |
g/m2 |
Internal |
108-109 |
|
Caliper |
um |
Internal |
75±2 |
|
Coating weight |
g/m2 |
Internal |
10.0±1 |
|
Tensile strength(md) |
Mpa |
ASTM D 882 |
> 150 |
|
Tensile strength(td) |
MPa |
ASTM D 882 |
> 150 |
|
Elongation at break(md) |
% |
ASTM D 882 |
> 80 |
|
Elongation at break(td) |
% |
ASTM D 882 |
> 70 |
|
Matt degree |
% |
ASTM D 882 |
<15 |
|
Release figure |
N |
Internal |
3-4 |
|
Shrinkage(md)(180ºC*1minutes) |
% |
ASTM D 1204 |
< 0.5 |
|
Shrinkage(td) (150ºC*30minutes) |
% |
ASTM D 1204 |
< 0.5 |
|
SURFACE RESISTIVITY (antistatic side) |
|
ASTM D 257 |
< 107 |
Delivery
|
Selling Units: |
Single item |
|
Single package size: |
20X20X20 cm |
|
Single gross weight: |
4.000 kg |
Lead Time
|
Quantity (square meters) |
1 - 5000 |
5001 - 10000 |
10001 - 50000 |
> 50000 |
|
Lead time (days) |
7 |
10 |
15 |
To be negotiated |
Advantages of Rust Resistant Film
It can block steam and prevent metal surface from corrosion, with a protection period of more than 2 years.
It has a transparent and beautiful appearance and is also available in different colors, which can be visually inspected and facilitate inventory control.
PE film is clean and safe, harmless to metal and human body, and recyclable and environmentally friendly.
It has good sealing and printing properties for metal surface coverage.
It is easy to use and remove. It has certain waterproof and moisture-proof capabilities.
Applications of Rust Resistant Film
It can effectively avoid the heat transfer caused by air convection, so the thermal conductivity can be greatly reduced, and can be applied to building thermal insulation
When the house storefront is waterproof and moisture-proof, waterproof composite film is often used, which has low cost and good effect.
Food packaging bags using aluminum foil packaging can be very good protection: aroma, color, taste, quality.
Widely used in masks and medical product packaging to prevent physical oxidation of medical products in the environment.
Mainly used for postal packaging of products. The shock-absorbing bubble film inside the bubble bag can protect the packaged products well
Suitable for various circuit boards, electronic products, precision machinery parts, consumer goods, industrial products and other packaging. which have three functions of anti-static, moisture-proof and anti-electromagnetic interference, are the preferred packaging materials for semiconductor and other electronic industries
Product Description
|
Product Name |
Conductive PE film |
|
Model NO. |
KNCF-152 |
|
Structure |
Electron film+PE |
|
PE+Electron film |
|
|
Other structure can be customized |
|
|
Thickness |
Polyethylene(PE):Customized |
|
Transparency |
Translucence |
|
Function |
Thermal insulation used in all kinds of outer packaging building external wall insulation, etc |
|
Finalproduct |
Roll or customized |
|
Transport Package |
Pallet/Wooden Case or Customized |
|
Regular thickness of various materials |
|
|
Aluminum foil(AL) |
6,7,9,12,15,23,25,35,40,50,60mic.etc |
|
Polyethylene terephthalate(PET) |
6,8,10,12,15,19,25,35,38,50,60mic.etc |
|
VMPET |
6,8,10,12,15,19,25,35,38,50,60mic.etc |
|
Nylon(PA) |
10,15,25mic.etc |
|
Oriented polypropylene(OPP) |
18,23,25,35mic.etc |
|
Cast polypropylene(CPP) |
18,23,25,35mic.etc |
|
Polyethylene(PE) |
Customized |
|
Regular parameter of cloth materials |
|||
|
Name |
Weight |
Material structure |
Special technology |
|
Woven fabric |
40-200g/square meter |
Usually woven by pp, pe |
Colors can be customized |
|
Glass fiber cloth |
70,80,100,110,200,410g/square meter |
Composite and printable |
Flame retardant, anti-aging |
Delivery
|
Package Size |
5.00cm * 1.00cm * 1.00cm |
|
Package Gross Weight |
1.000kg |
Lead Time
|
Quantity (rolls) |
1 - 50 |
> 100 |
|
Lead time (days) |
10 |
To be negotiated |
Packaging & Shipping
Packaging
Inside with paper board with different thicknesses.The exterior is wrapped in wrap film or bubble film.
Paper board protect two side head face.Blank wooden cases and cartons.Out side with pallet or bulk in roll.According customer require.
Shipping
We maintain a busy network of forestry and social development staff along with local facilitators in the areas we work.
We maintain a busy network of forestry and social development staff along with local facilitators in the areas we work.
FAQ
We're professional functional film manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy or wholesale high-grade functional film at competitive price from our factory.
Rust Resistant Film, Flame Retardant Coating, Release Film
